1000V 1000A AC Digital Clamp Multimeter True RMS VFD Multimeter

Product Categories
XI'AN BEICHENG ELECTRONICS CO.,LTD
Contact Now

1000V 1000A AC Digital Clamp Multimeter True RMS VFD Multimeter

Brand Name : VICTOR

Model Number : VICTOR 610D

Certification : CE

Place of Origin : CHINA

MOQ : 300

Price : 100pcs: USD20.5/pc; 100pcs to 500pcs: USD20/pc; 500pcs to 1000pcs: USD19.5/pc; Above 3000pcs: USD19/pc

Payment Terms : T/T, Western Union, L/C,Paypal

Supply Ability : 10000 pc available

Delivery Time : 5-30 days

Packaging Details : Color box ,30pcs/Carton ,14.5KG/Carton

Color : Black and orange

Weight : Approx 380g

Name : AC Clamp Meter

Display : 5999 Counts

Operation way : Auto range

Product size : 240×85×48mm

Battery : 1.5V*3AAA

NCV : yes

Contact Now

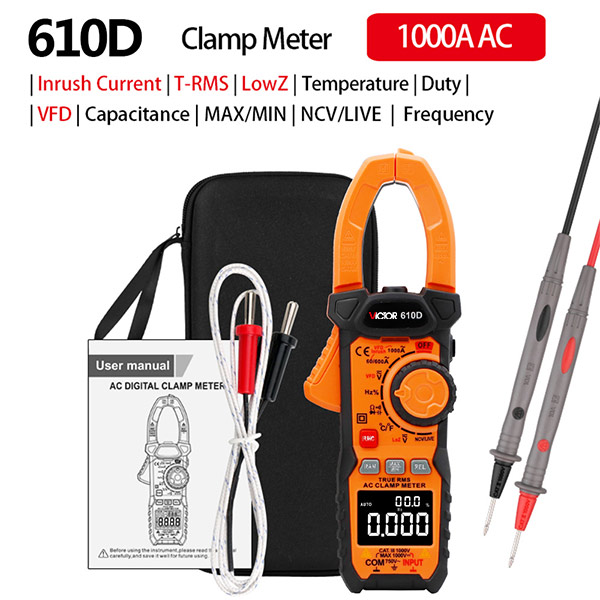

VICTOR 610D 1000V 1000A AC Digital Clamp Meter True RMS Professional Pinza Amperimetrica Capacitance Ohm Hz VFD Multimeter

overview
This meter is a double impedance high performance trueRMS digital clamp meter, which integrates multiple functions,makes your work easier, more efficient and safer.
lt can measure AC/DC voltage,AC current, frequency,duty, resistance, capacitance, temperature, diode,NCV, VFD,inrush current, etc.High Input lmpedance Voltage Measurement:
When measuring in a circuit, it has little effect on circuitperformance. This is the desired effect for most voltagemeasurement applications and is especially important forsensitive electronic or control circuits.Low Input lmpedance Voltage Measurement( Lozv):
lt can safely troubleshoot sensitive electronic or controlcircuits and circuits that may contain false voltages, and canmore reliably determine whether there is a voltage on the circuit.Panel description

Technical parameter
Modle610D610E
basic skillsRangePrecision
DC voltage600mV/6V/60V/600V600mV/6V/60V/600V±(0.5%+5)
1000V1000V±(0.8%+5)
AC voltage600mV/6V/60V/600V600mV/6V/60V/600V±(0.8%+5)
750V750V±(1.0%+5)
VFD(750V)VFD(750V)±(2.0%+5)
DC current*60A/600A/1000A±(2.5%+8)
AC current60A/600A/1000A60A/600A/1000A±(2.5%+8)
VFD/INRUSH:
±(5.0%+10)
Resistance600Ω/6kΩ/60kΩ/
600kΩ/6MΩ/60MΩ		600Ω/6kΩ/60kΩ/
600kΩ/6MΩ/60MΩ		±(1.0%+5)
Capacitance10nF/100nF/1000nF/
10uF/100uF/1000uF/10mF		10nF/100nF/1000nF/
10uF/100uF/1000uF/10mF		±(4.0%+5)
100mF100mF±(5.0%+10)
Frequency/Duty Cycle10Hz/100Hz/1000Hz/
10KHz/100KHz/1000KHz		10Hz/100Hz/1000Hz/
10KHz/100KHz/1000KHz		±(1.0%+3)
10MHz 1~99%10MHz 1~99%±(3.0%+3)
Temperature-20°C ~0°C-20°C ~0°C±3°C
0°C~400°C0°C~400°C±1.0% or ±2°C
400°C~1000°C400°C~1000°C±2%
-4°F~32°F-4°F~32°F±6°F
32°F~752°F32°F~752°F±1.0% or±4°F
752°F~1832°F752°F~1832°F±2%
Features
DisplayLCD display
Max display6000 counts
Diode√
Data retention√
NCV√
Fire detection√
Low voltage√
Flashlight√
True effective value√
INRUSH√
VFD√
Max/MIn√
LoZ√
Working humidity0~40°C <80%
Storage humidity-10~50°C <80%RH
Auto shut-downAbout 15 minutes
Over-range displayThe highest digit shows OL
Unit symbol√
Open jaws40mm
input resistance10MΩ
Sampling rate3 times/sec
Power supplyThree AAA batteries
